Detailed Description & Specifications

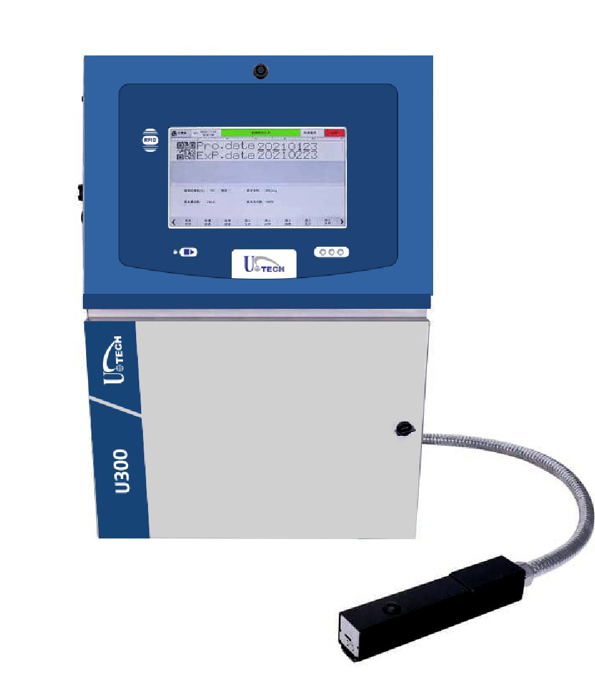

This machine is designed for high-quality printing and improving production line effectiveness.
Independent print head
Direct sealing nozzle prevents ink leakage, ensuring stable operation.
Robust ink system
Double-head pump design and double mixing system prevent ink precipitation, especially for white ink applications.
Durable construction
Stainless steel chassis and IP55 protection level for reliable performance in harsh environments.
Technical Specifications
| Specification | Details |
|---|
| Printhead duct | 3m/6m |
| Nozzle specifications | 50u/60u/75u |
| Printing distance | 2-16mm |
| Printing height | 3-30mm |
| Printing lines | 1-5 lines |
| Max. printing speed | 384m/min (5 dots in 1 line, 0.5 dot spacing) |
| Counter | 24 independent counters |
| Ink color | Black,red,blue,yellow,invisible |
| Inktype | High adhesion, migration resistance,hightemperature resistance, special for glass,permeability, food grade,oil resistance |
| Font | 5x6L 7x6L 7x10L 9x8L 9x11L11x11L 16x16L 24x24L 32x32L11x11B 16x16B 24x24B 32x32B |
| Printing materials | Carton, plastic, cable, metal, boarding,pipe, stone, glass, electronic components,auto parts, industrial chemical packaging,medical/food/gift box |
| Print content | Text time,date(Julian year),logo,shift,SN,dynamic barcode/QR code,dynamic serial data,dynamic database (additional content can be added as required) |
| Operation system | Embedded Linux security operating system |
| Displayscreen | 10.1-inch color displayindustrial touch screen |
| Communicationinterface | USB,RS232, network port |
| Protection level | IP55 |
| Power parameters | Input 100~240V AC |
| Rated power | 150W |
| Externalinterface | Photocell, encoder, alarm light, infommation control |
| Memory | 256M |
| Material | SUS 304 stainless steel |
| Machine specifications | 485mmx242mmx664mm(Lengthxwidthxheight |
| Workingenvironment | Temperature 0~45°C/Humidity 30~70%Rh |
| Certificates | CE, RoHS, BIS |
| New weight | 23kg |
| Languages | Support more than 40 languages (Chinese,English, Arabic, Danish, German, Russian,French, Finnish, Korean, Japanese, Spanish,Italian,etc) |
