Detailed Description & Specifications

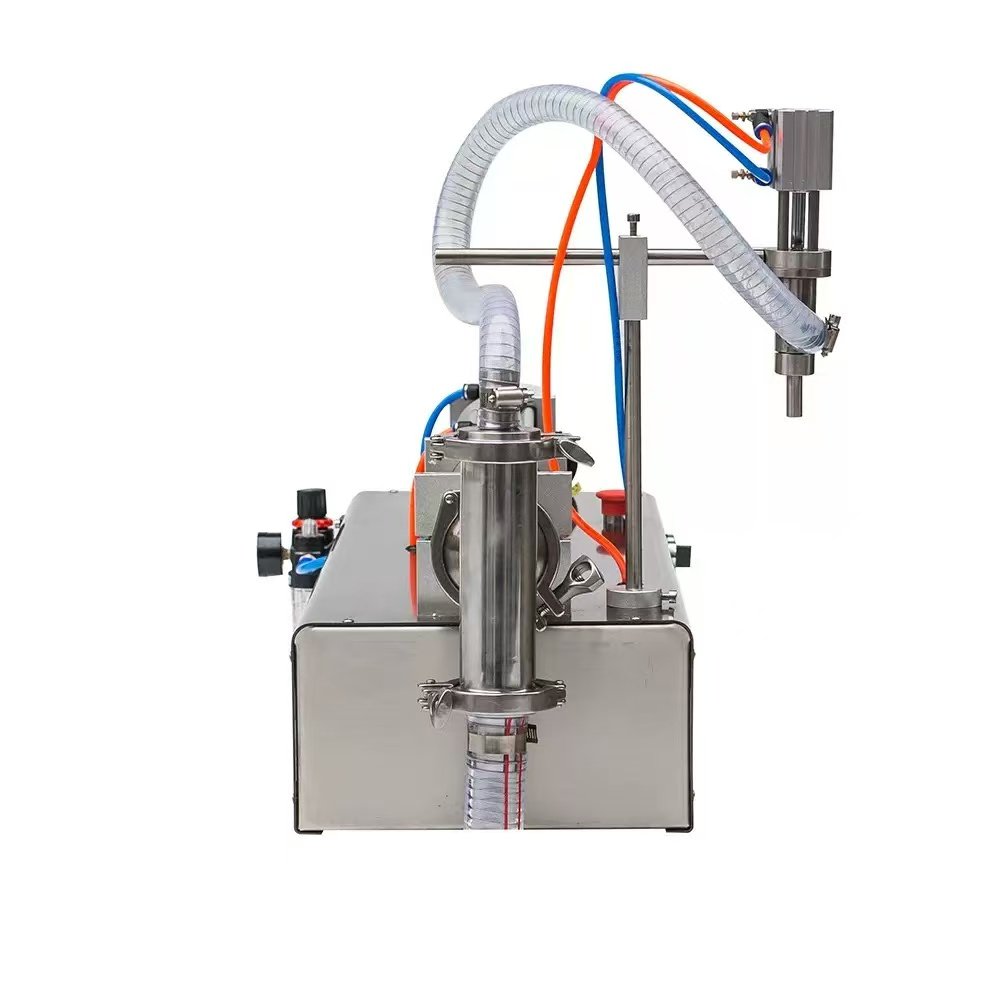

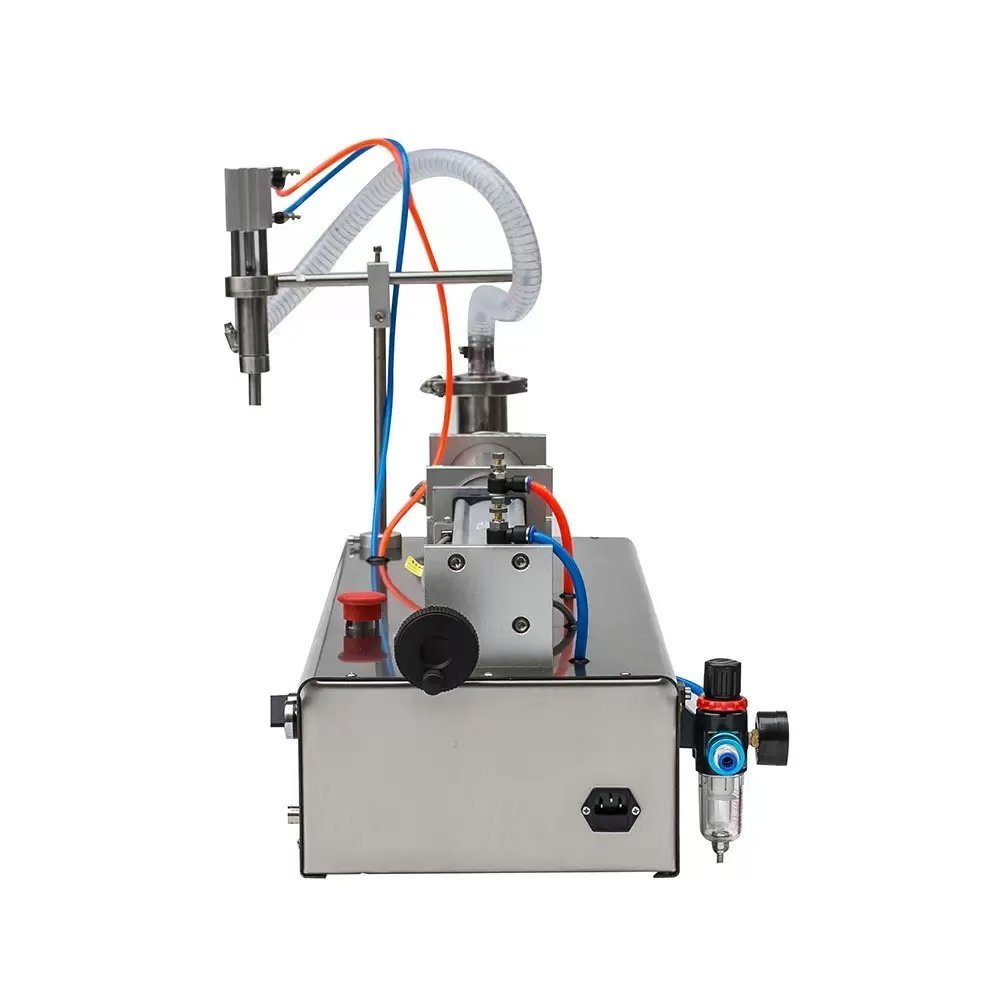

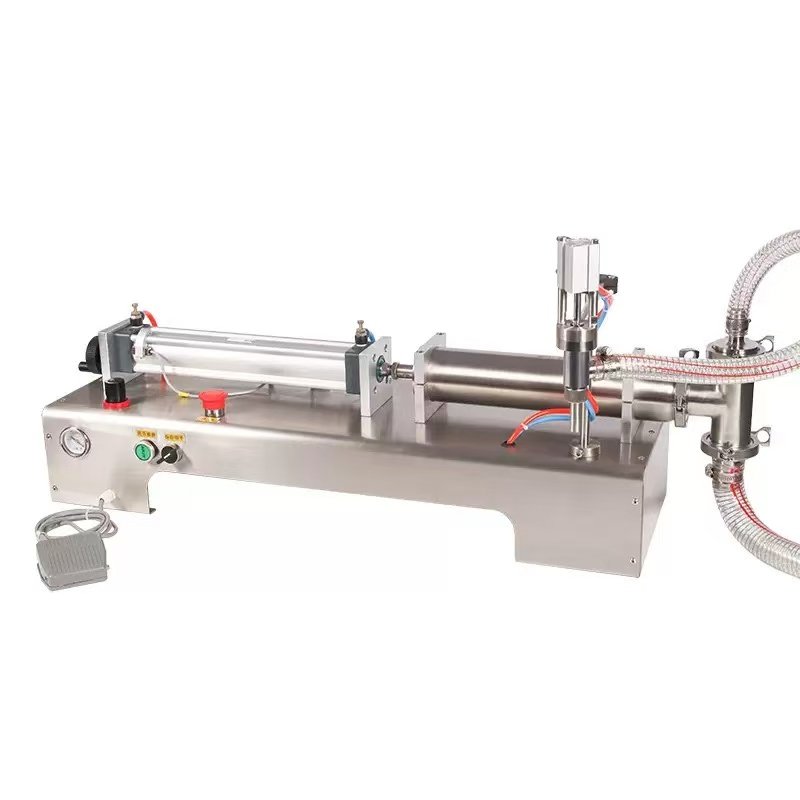

This single-head liquid filling machine is developed based on our pneumatic filling machine series, referencing advanced foreign technology. It’s a semi-automatic piston-type filler (no electricity needed), making it safe and easy to operate. With a compact design and 316L stainless steel construction, it meets GMP requirements, suitable for liquid filling in medical, chemical, food, pesticide, and other special industries – a practical solution for modern enterprises.
Built for Durability/Speed/Precision
Constructed with 316L stainless steel (contact parts) and equipped with German FESTO/Taiwan AirTac pneumatic components, the machine ensures durability. It offers adjustable filling capacity & speed, with high filling accuracy (±1%), supporting 4-30 bottles per minute (depending on capacity).
Key Feature Name
“Semi-Automatic Pneumatic Filling”: No electricity required for operation; leak-proof, anti-drawing, and anti-lifting filling device ensures stable, clean filling.
User-Friendly Operation
The machine features a reasonable, compact design and simple operation. It requires no complex training, and maintenance is straightforward – ideal for small-to-medium production lines.
Technical Specifications
| Specification | Details |
|---|
| Power Supply | 220V 50/60 Hz |
| Air Pressure | 0.4-0.6 Mpa |
| Speed | Speed 4-30 bottles/min |
| Accuracy | ±1% |
| Capacity Range | 5-100 MI/20-300 MI/50-500 MI/100-1000 MI/1000-5000 MI/500-3000 MI |
| Air Consumption | ≥0.008m³/sec |
| Weight | 37 kg/42 kg/47 kg/47 kg/70 kg/60 kg |
