Detailed Description & Specifications

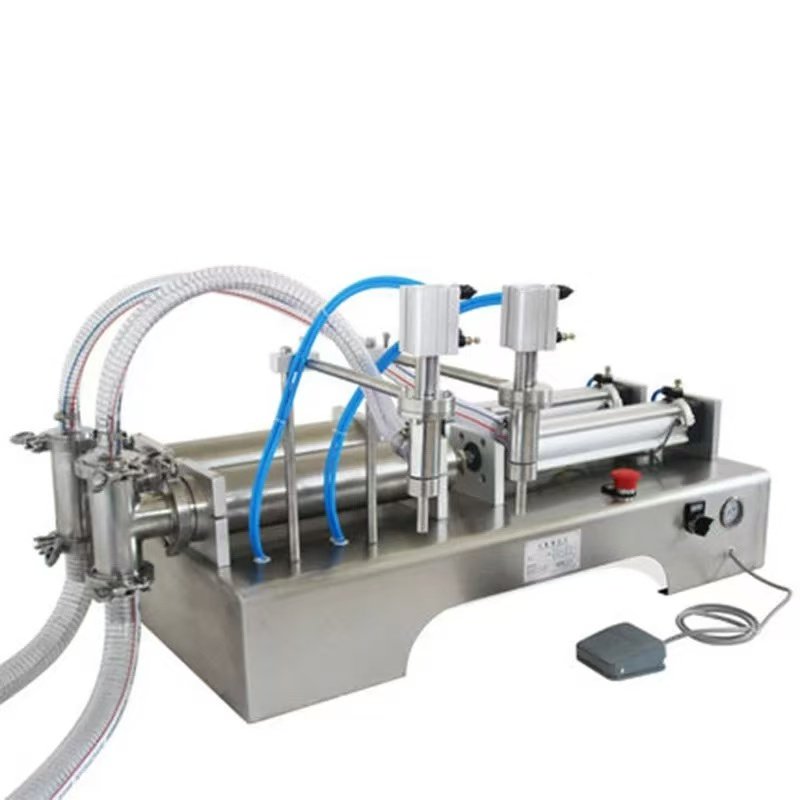

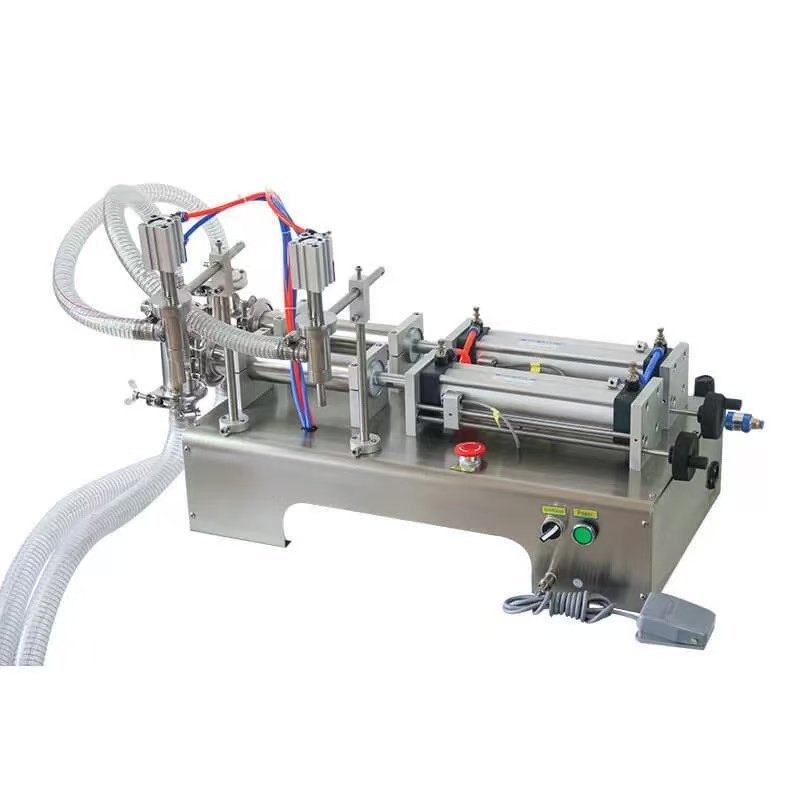

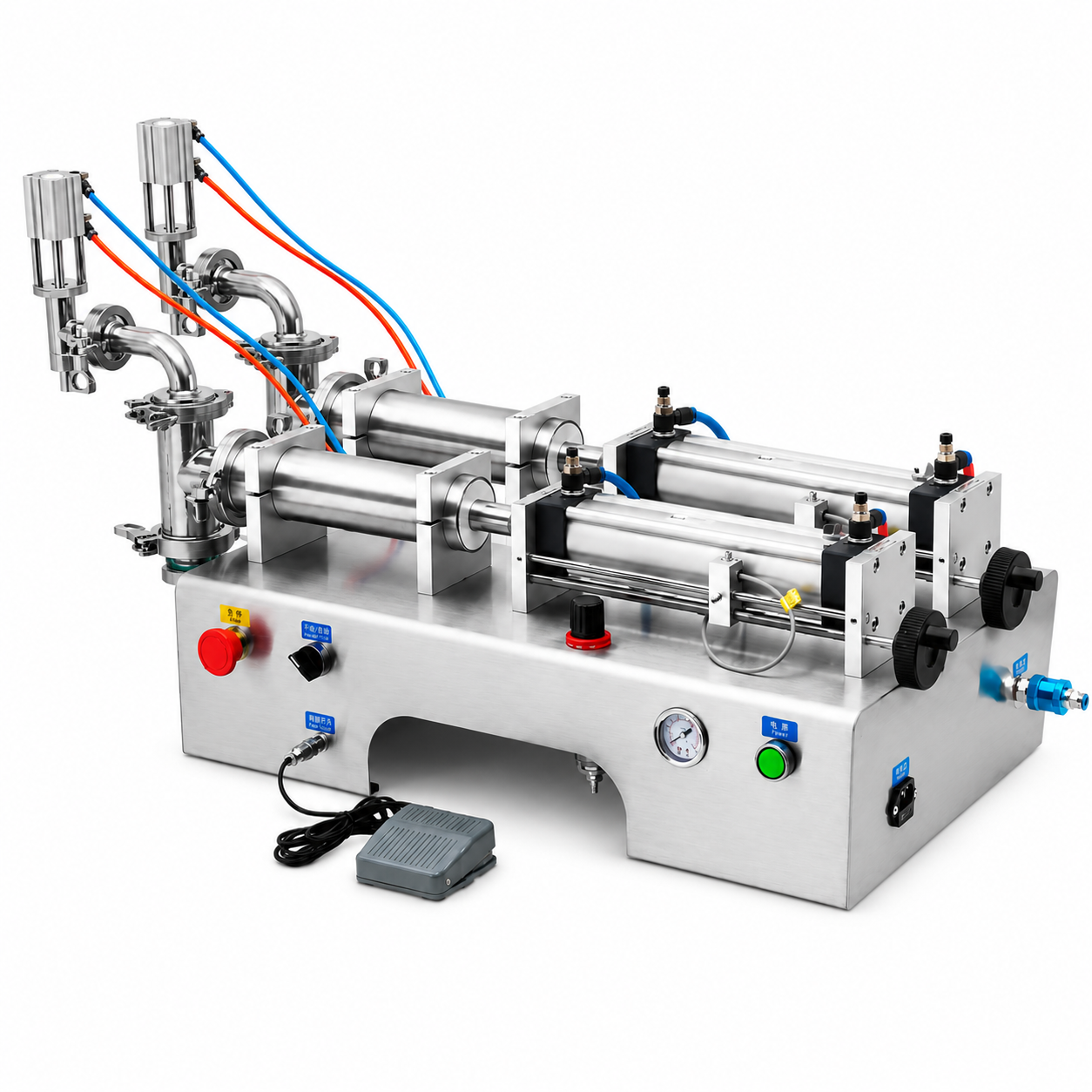

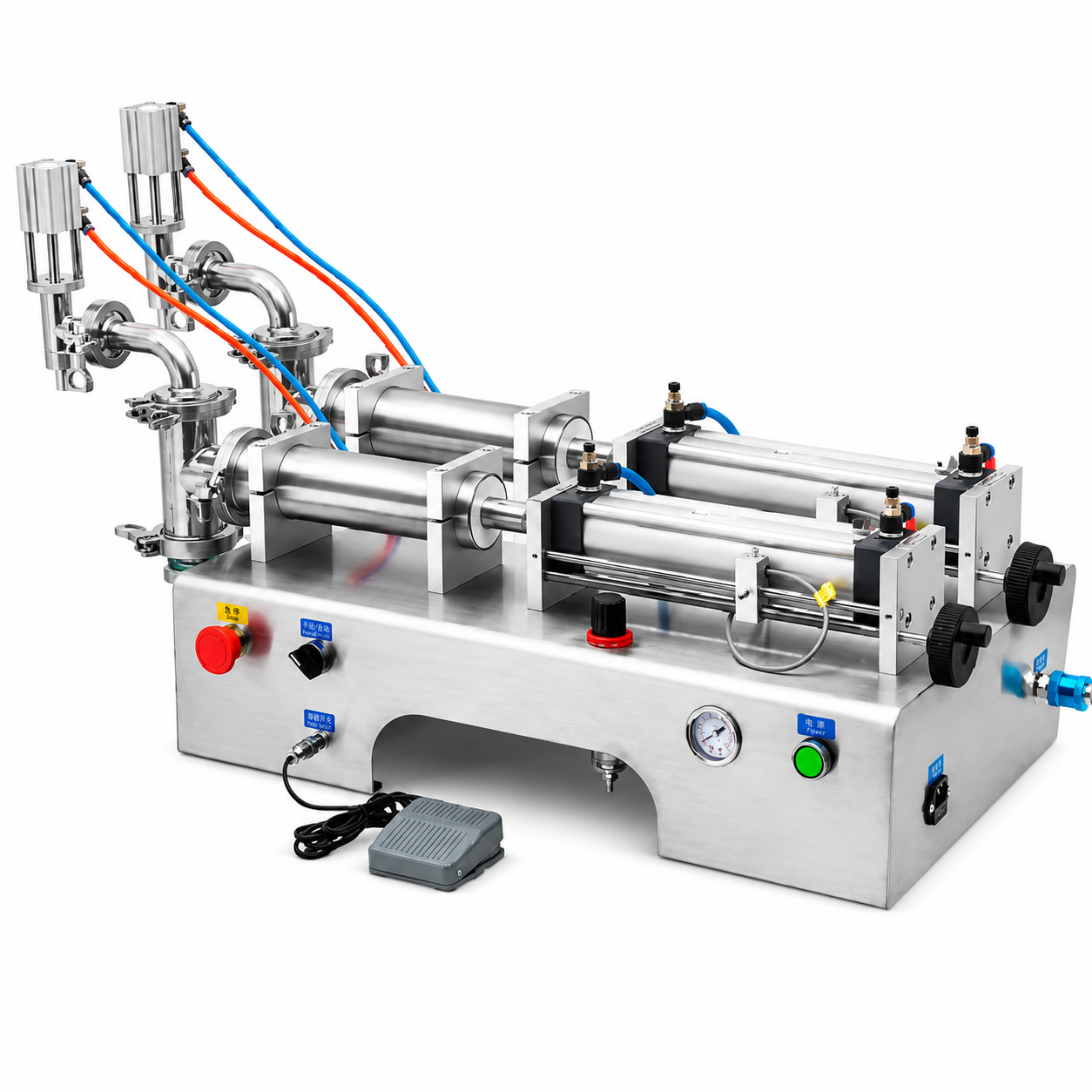

Upgraded from our single-head series with advanced foreign technology, this double-head liquid filling machine has 2 independent heads/valves (operate separately) for precise filling.The anti-leakage filling head & adjustable speed/capacity make it safe, efficient, and suitable for pharmaceuticals, chemicals, beverages, and pesticides.
Built for Durability/Speed/Precision
Dual independent heads enable 10-50 bottles/min filling speed (2x faster than single-head models). It offers ±1% accuracy, adjustable capacity via a handle, and air pressure compatibility (0.4-0.8 Mpa) for stable operation.
Key Feature Name
“Dual Independent Heads”: Each head has its own valve, allowing separate operation – flexible for different batch sizes and improving production efficiency.
User-Friendly Operation
The machine’s reasonable design ensures easy operation (no complex training), while the 316L stainless steel construction simplifies cleaning and maintenance, fitting modern enterprise production needs.
Technical Specifications
| Specification | Details |
|---|
| Power Supply | 220V 50/60 Hz |
| Air Pressure | 0.4-0.8 Mpa |
| Accuracy | ±1% |
| Capacity Range | 5-100 MI/20-300 MI/50-500 MI/100-1000 MI |
| Air Consumption | ≥0.016m³/sec |
| Weight | 35KG/40KG/40KG/45KG |
